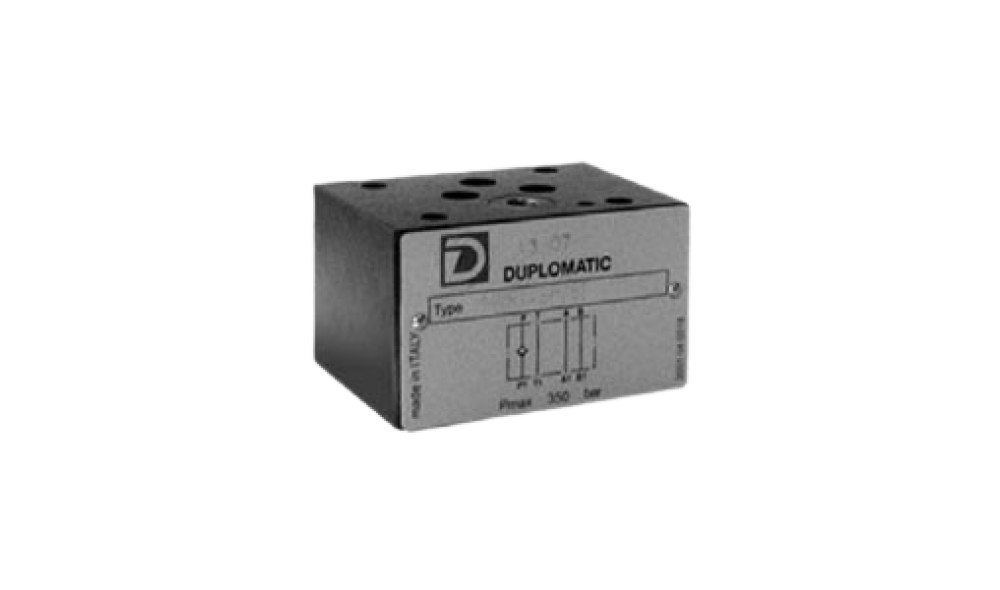

Duplomatic Modular Check Valves: Cetop 3 (NG6) & Cetop 5 (NG10) Series
Optimize your hydraulic systems with the world-class reliability of Duplomatic Oleodinamica. Our modular check valves, designed for Cetop 3 (NG6) and Cetop 5 (NG10) interfaces, provide superior flow control and leak-free locking solutions for demanding industrial applications.
High-Performance Directional Control
Duplomatic modular check valves (non-return valves) allow free flow in one direction while providing a high-pressure seal in the opposite direction. These "stackable" components are engineered to be mounted directly under directional control valves, reducing piping complexity and installation space.
Key Features and Benefits
  • High Pressure Rating: Reliable operation up to 350 bar (5000 PSI) for heavy-duty industrial cycles.
  • ISO 4401 Compliance: Fully interchangeable with all standard Cetop 03 and Cetop 05 mounting interfaces.
  • Zero-Leakage Seating: Features precision-ground "cone-on-edge" seats to ensure 100% leak-proof load holding.
  • Versatile Configurations: Available for P, T, A, or B lines, including pilot-operated versions for cylinder locking.
Duplomatic Cetop 3 (NG6) – MVR / MVPP Series
Ideal for compact hydraulic power units requiring precision and durability.
  • Max Flow Rate: Up to 50 l/min (13.2 GPM)
  • Max Operating Pressure: 350 bar
  • Common Models: MVR1, MVPP, CVM3
Duplomatic Cetop 5 (NG10) – CHM5 / VPP4M Series
Engineered for high-flow industrial machinery, offering low pressure drops even at maximum capacity.
  • Max Flow Rate: Up to 100 l/min (26.4 GPM)
  • Max Operating Pressure: 320 - 350 bar
  • Common Models: CHM5, VPP4M

Technical Specification Overview
FeatureCetop 3 (NG6)Cetop 5 (NG10)
Mounting InterfaceISO 4401-03-02ISO 4401-05-04
Max Pressure350 Bar320 - 350 Bar
Max Flow Rate50 l/min100 l/min
Fluid Temperature-20°C to +80°C-20°C to +75°C
