Duplomatic Modular Pressure Compensators: Cetop 3, 5, and 8
Duplomatic Oleodinamica offers a high-performance range of modular pressure compensators designed for hydraulic systems requiring precise flow control regardless of load variations. These valves are typically used in combination with proportional directional valves to maintain a constant flow rate by keeping a fixed pressure drop (
) across the orifice.
Technical Specifications and Flow Rates (40, 100, 300 l/min)
The flow capacities you mentioned (40, 100, and 300) refer to the maximum flow rates (liters per minute) handled by the respective Cetop sizes (NG series).
| Cetop Standard | NG Series | Max Flow Rate (l/min) | Max Operating Pressure (bar) |
|---|---|---|---|
| Cetop 03 | NG6 | 40 l/min | 350 bar |
| Cetop 05 | NG10 | 100 l/min | 320 bar |
| Cetop 08 | NG25 | 300 l/min | 350 bar |
1. Cetop 03 (NG6) - 40 l/min
The PCM3 series is designed for compact hydraulic circuits. It ensures stable speed control for small actuators and motors where the flow does not exceed 40 l/min.
2. Cetop 05 (NG10) - 100 l/min
The PCM5 series is the industry standard for medium-scale machinery. It supports up to 100 l/min, providing excellent load-independent regulation for general industrial applications.
3. Cetop 08 (NG25) - 300 l/min

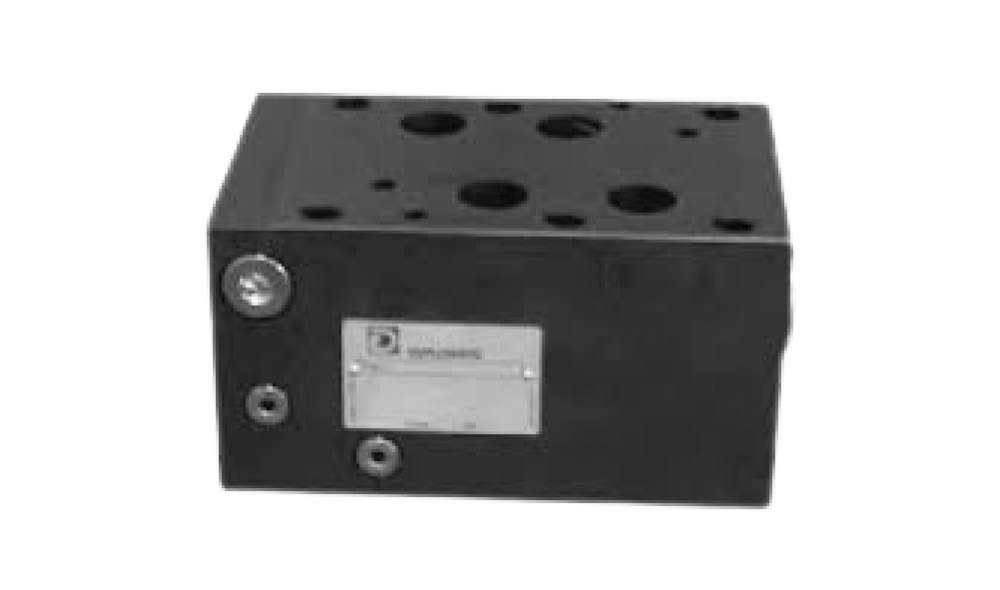

The PCM8 series is engineered for heavy-duty applications. Capable of managing high volumes up to 300 l/min, it is ideal for large hydraulic presses, mobile machinery, and high-power industrial units.
Key Features and Benefits
- Load Independence: Ensures that the actuator's speed remains constant even if the workload changes.
- Two-Way vs. Three-Way Versions:
- Two-way compensators are used for meter-in or meter-out control.
- Three-way compensators (PCMPC series) bypass excess flow to the tank (T-line) at the required pressure, improving energy efficiency.
- Stackable Design: Compliant with ISO 4401 standards, allowing easy mounting directly under directional valves without additional piping.
- Fixed Adjustment: Available with different spring settings (e.g., 4 bar or 8 bar) to optimize system sensitivity.
