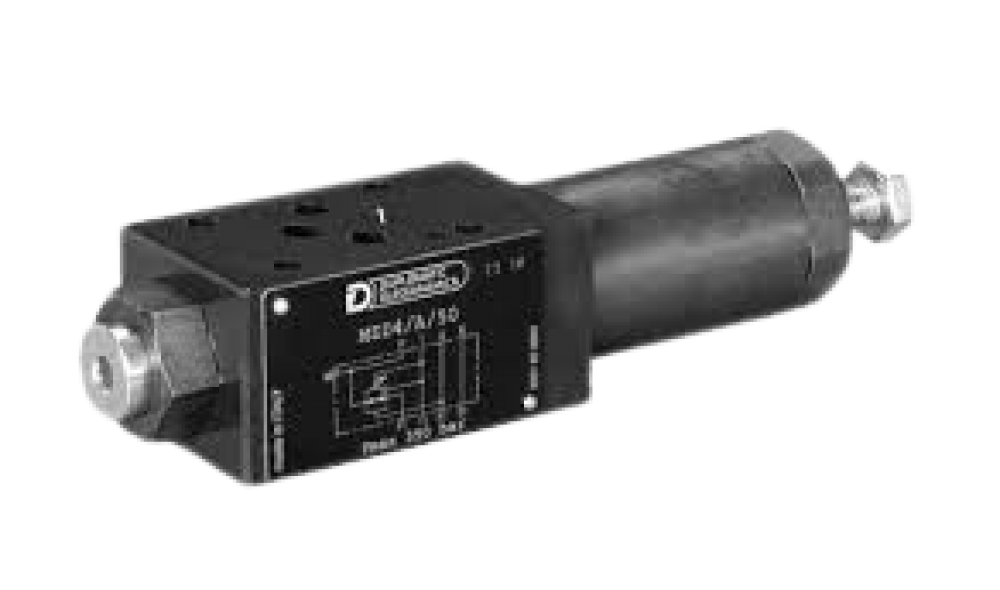

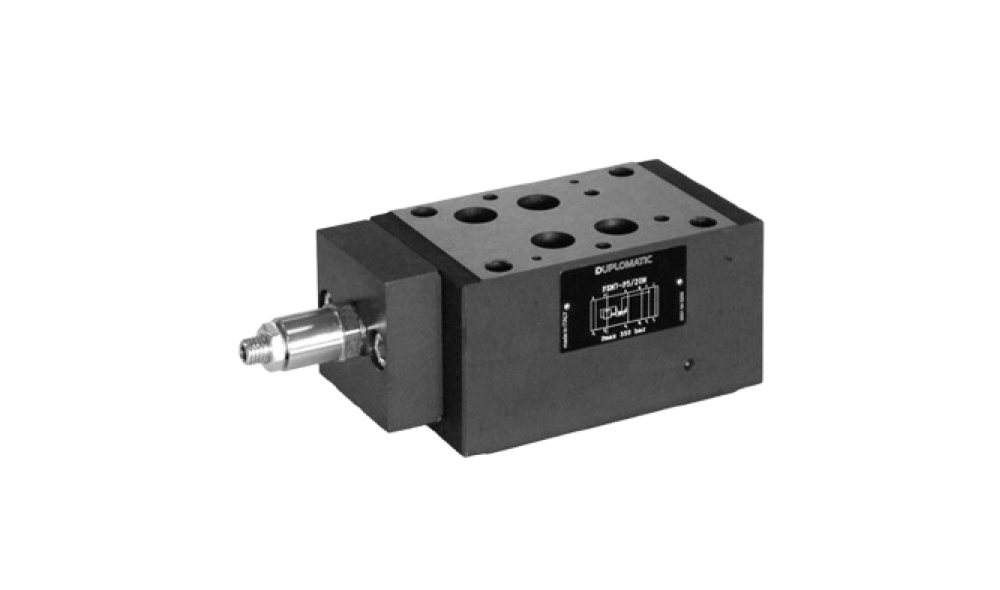

CETOP modular pressure reducing valves (NG6, NG10, NG16) are essential hydraulic components used to maintain a constant, lower pressure in a specific part of a circuit, regardless of the main system pressure. Their modular design allows for "sandwich" mounting, which saves space and simplifies assembly by eliminating extra piping.
Modular Pressure Reducing Valves: Capacity and Specifications
The selection of these valves is primarily based on the CETOP standard (size) and the maximum flow rate (LPM) required by the system.
  • CETOP 03 / NG6 Modular Valves
    • Flow Capacity: Up to 50 L/min.
    • Usage: Best for low-to-medium flow applications where space is limited and precision is key.
  • CETOP 05 / NG10 Modular Valves
    • Flow Capacity: Up to 80 L/min.
    • Usage: The industrial standard for most medium-duty machinery, offering a balance between size and high flow performance.
  • CETOP 07 / NG16 Modular Valves
    • Flow Capacity: Up to 250 L/min.
    • Usage: Designed for heavy-duty industrial systems, high-speed cylinders, and large hydraulic motors requiring high volume flow.
Key Technical Features

  • Modular Design: Enables easy stacking under directional control valves.
  • Pressure Adjustment: Features an adjustment screw or hand knob for precise output pressure control.
  • Line Options: Available for reducing pressure on the P line (main supply), or specifically on the A or B work lines.
  • Max Working Pressure: Typically rated for operations up to 315-320 bar.
