- Stock: In Stock
- Brand: DURAVIS
- Product Code: BLV-S232B
Available Options
Model: BLV-S232B Series

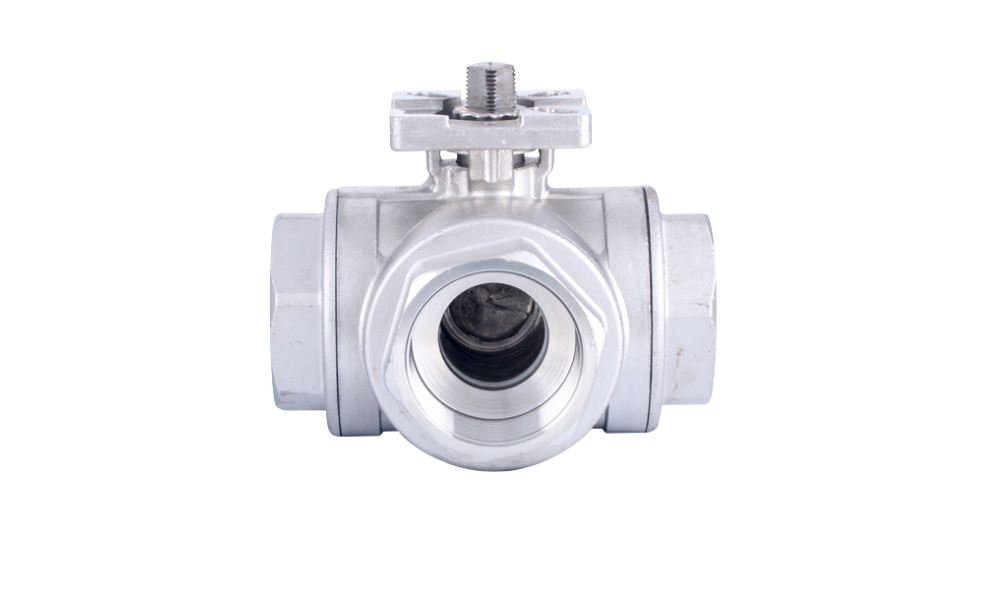

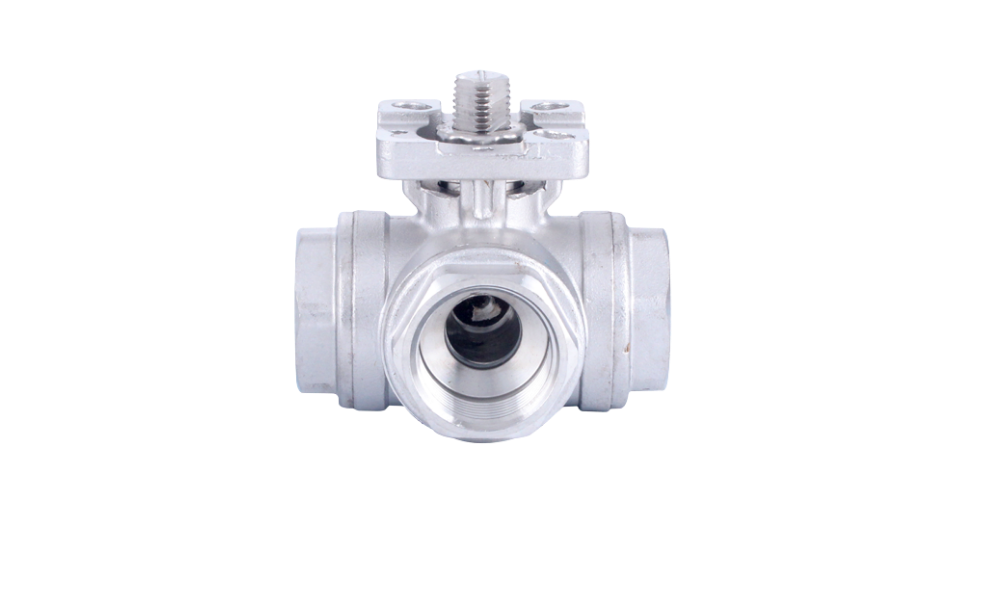

This model is a 3-way, 2-position (3/2 way) flanged, full bore stainless steel ball valve. It is commonly used in applications where fluid direction needs to be changed, mixed, or diverted. The valve can be integrated into automatic systems with compatible electric actuators.

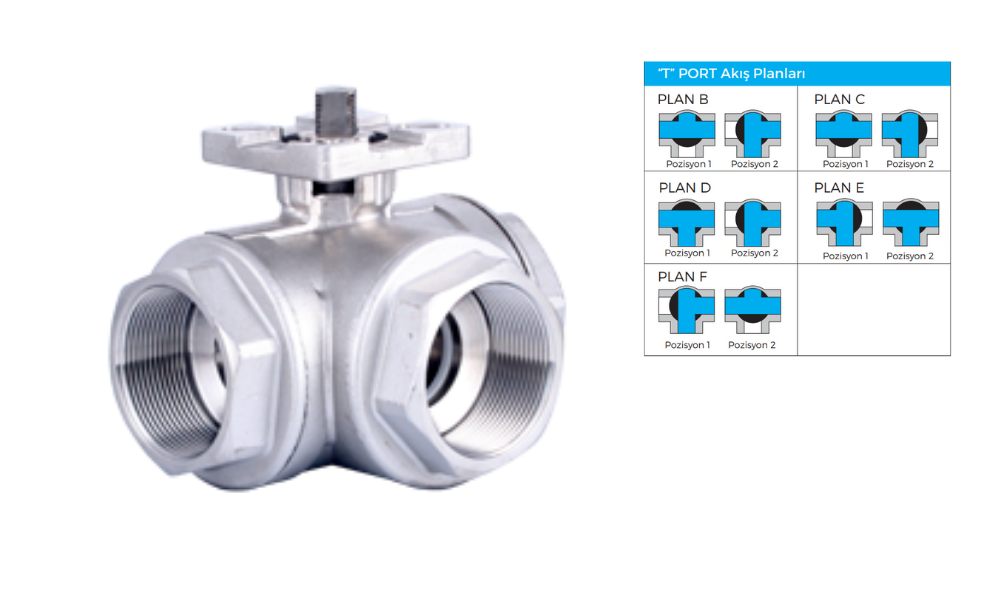

Flow Type: 3/2 Way (L or T Port Options)
The valve has three ports and allows flow direction control.
-
L Port: Connects two ports while one remains closed.
-
T Port: Can connect all three ports simultaneously or direct flow between them.
Size Range: DN15 – DN50 (1/2" – 2")
Available in sizes from 1/2 inch to 2 inches. Suitable for various pipe dimensions.
Body Material: AISI 304 or AISI 316 Stainless Steel
AISI 304 is a high-quality stainless steel suitable for general use.
AISI 316 offers enhanced chemical resistance, ideal for more aggressive environments.
Power Supply Options: 230V AC or 24V DC/AC
Available with two voltage options to suit different automation system requirements. Easy integration into electrical control panels.
Operating Temperature: -50°C to +210°C
Wide temperature range allows reliable operation in both cryogenic and high-temperature processes.
Operating Pressure: PN63
Withstands up to 63 bar of system pressure. Suitable for high-pressure industrial applications.
Sealing Material: PTFE (Teflon)
Provides excellent chemical resistance and low friction. Ensures long-lasting tight sealing performance.
Control Type: On/Off (Optional: Proportional Control)
The valve is designed for open/close control. Proportional control options are available upon request.
Actuator Compatibility: ISO 5211 Standard
Compatible with electric actuators following the ISO 5211 standard. Ensures easy mounting and reliable integration.
Typical Applications:
-
Liquid and gas direction control
-
Mixing or diverting in process systems
-
Cleaning and sterilization systems
-
Water and chemical treatment processes
-
Filling, dosing, and packaging machines
-
Automation in industrial piping systems
